PRODUCT

✐RL-E6U

Practical Laser Projector for Education/Exhibitions

-Brightness: 6200 Lumens

-Resolution: WUXGA (1920x1200)

-Projection Technology: 3LCD

-Equipped with Digital Zoom and Digital Shift Funtions

-Multi-Point/Curved Surface Calibration

-Optional Short-Throw Lens

-A Multi-Functional Remote Control

RL-E6U1
RL-E6U2
3LCD

3LCD

LASER SOURCE

LASER SOURCE

high contrast

High Contrast
5,000,000:1

Curved Surfaces Correction Function

Curved Surfaces Correction Function

Digital Zoom Function

Digital Zoom Function

Digital Shift Function

Digital Shift Function


3LCD Display Technology

Long-lasting Laser light source

Stable and reliable laser light source has an ultra-long service lifespan of 30,000 hours. It can save more than 30% of energy consumption and solve problem of lumen depreciation.

4K

4K Signal Compatible

The E-series support decoding 30Hz 4K signal and HDR for an ultra-high-resolution experience. The system also supports HDR (High Dynamic Range) and emulation for BT.2020.


3LCD Display Technology

The 3LCD technology utilizes three separate liquid crystal panels, utilizing the photoelectric effect of liquid crystal molecules to control the transmittance and reflectance of the liquid crystal units through circuits, thus producing different colored images and grayscale levels. Compared to DLP, 3LCD offers more vivid, natural, and smooth dynamic image presentation, providing a more comfortable viewing experience that eliminates color fringing and delivers impressive large-scale visuals.

3LCD Display Technology

All-in-One Performances

With a high resolution of WUXGA (1920x1200) and a brightness of 6200 lumens, the RL-E6U excels in professional performance whether in tiered classrooms or large well-lit conference rooms. In comparison to other projectors in its class, the RL-E6U features a sleek and lightweight design, weighing only 7.1kg. This makes it suitable for various environments without impacting the decor style and provides easy installation and storage.

All-in-One Performances

1.6x Optical Zoom Lens

Equipped with a 1.6x optical zoom lens, the projector effortlessly projects a 100" screen from a distance of 2.5m to 4m, providing convenient flexibility for installation.

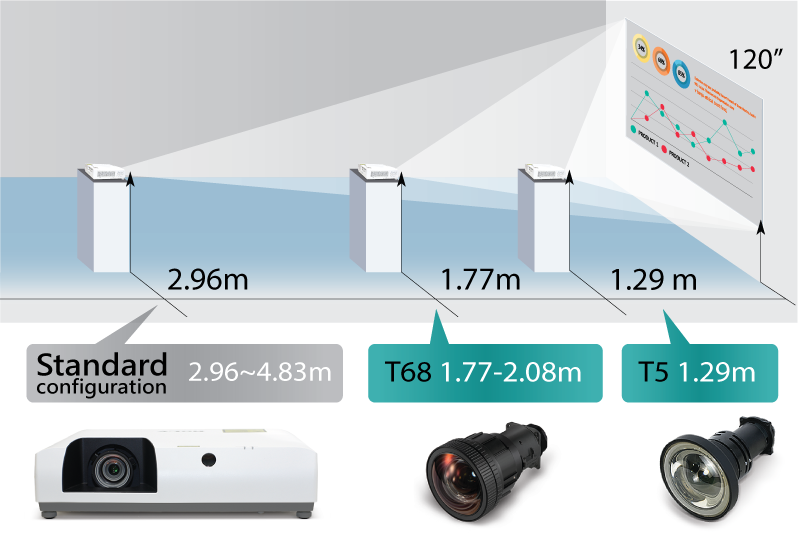

Optional Short Throw Lens

You can opt for the 0.5 fixed short-throw lens and the 0.66-0.81 short-throw lens. Choose the suitable short-throw lens based on environmental needs, accommodating various installation scenarios even in confined spaces.

Optional Short Throw Lens

Digital Zoom Function

When upgrading school or business projectors, a consideration is whether the new projector fits the existing ceiling installation. With the newly introduced digital zoom function, the display can be proportionally reduced to fit your screen, reducing the need to reinstall the projector mount and saving time, money, and effort.

Digital Zoom Function

Digital Shift Function

The digital zoom is paired with a digital shift function, allowing the shrunken image to be moved vertically, horizontally, and diagonally to the desired screen position, providing greater installation flexibility.

Digital Shift Function

Vertical, Horizontal, and Corner Keystone Correction Function

With vertical, horizontal, and corner keystone correction functions, distortion caused by projecting at angles or unusual orientations is easily rectified, ensuring the projection aligns with the screen.

Vertical, Horizontal, and Corner Keystone Correction Function

Keystone Correction Function for Curved Surfaces

This function rectifies the distorted perspective that occurs when projecting on curved surfaces due to their unique shapes, delivering natural and distortion-free visual images on curved or cylindrical surfaces.

Keystone Correction Function for Curved Surfaces
Keystone Correction Function for Curved Surfaces
Multi-point Correction Function

Multi-point Correction Function

In addition to the curved surface correction, you can choose between 5x5 and 9x9 corrections to adjust the image to irregular or wavy walls, allowing for more creative projection in special exhibitions or displays.


Signal-triggered Startup and Power-triggered Startup

Signal-triggered Startup and Power-triggered Startup

"Signal-triggered startup" means starting the projector by sending a computer signal, suitable for scenarios requiring remote control or centralized management of multiple devices, such as server rooms or remote maintenance. "Power-triggered startup" means starting the projector by supplying power. When the plug is connected to the power source, the projector will begin its startup process. Both options are available in this series, and the choice depends on the device type, application scenario, and user preferences.


Custom Startup Screen

Users can use a USB flash drive to extract their preferred images or company logo and set a personalized startup screen.

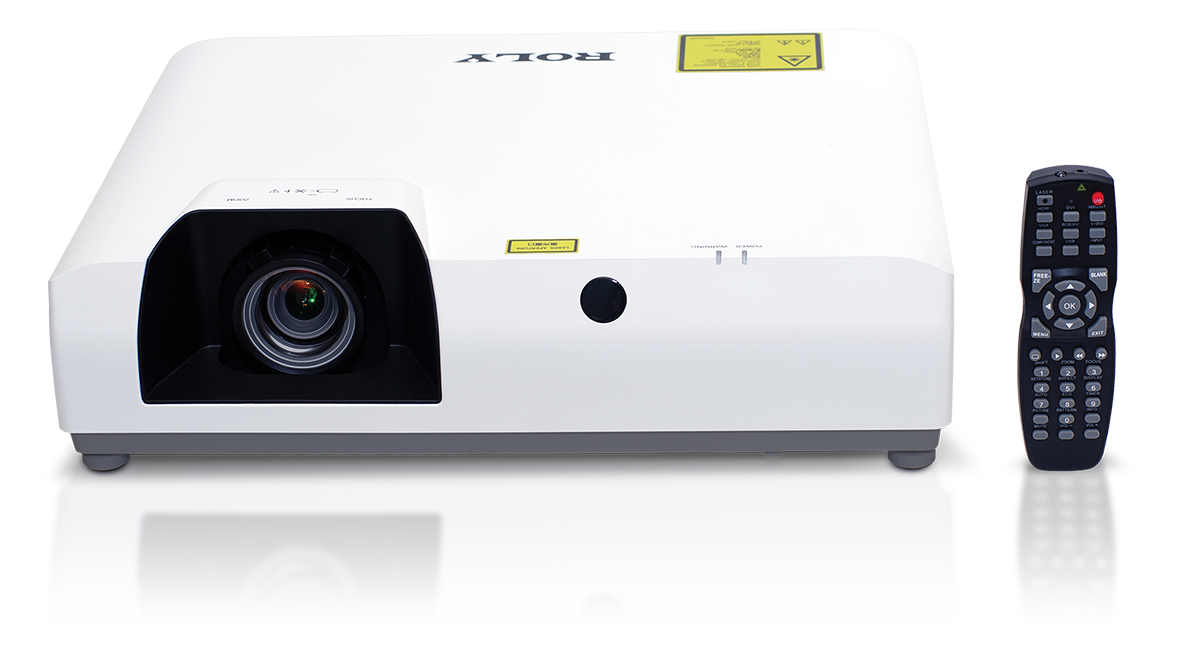

Multifunctional Remote Control Included

Multifunctional Remote Control Included

Equipped with 1 to 9 pairing codes, the remote control can control sets of projectors individually.


No Signal Power-off Function

When there's no signal input, the projector activates the power-off function after 60 minutes (customers can choose 5, 30, 60 minutes, etc.).


註解

24/7 uninterrupted and stable operation

Breakthrough from the thermal dilemma of the laser-light source, the stability of the whole machine is perfect under the condition of long-term uninterrupted operation.

註解

Low Operation Noise

Normal: 33 dB
ECO Mode: Only 25 dB

Specification

  • Brightness
    6200lm

  • Resolution
    WUXGA (1920x1200)

  • LCD panel
    3x0.64”(16:10)

  • Light source
    Laser diode

  • Light source life
    Normal: 20000h, ECO: 30000h

  • Contrast
    5,000,000:1

  • Lens
    F1.6~2.25,f=16.09~25.75mm,Manual zoom (1.6x),Manual focus

  • Screen size
    30”~300”

  • Throw Ratio
    1.14~1.86

  • Throw distance
    0.71m~12.16m

  • Keystone Correction
    Vertical: ±40º (Auto, Manual),Horizontal: ±15º (Manual)

  • Noise
    Normal: 38dB, ECO: 32dB

  • Projection method
    Ceiling/floor,front/rear

  • Power supply
    100-240V AC (50/60Hz)

  • Power Consumption
    380W

  • Standby power consumption
    ≤ 0.3W (Eco mode)

  • Dimension (WxHxD)
    445× 100× 350mm (not incl. protruded part)

  • Weight
    7.1kg
