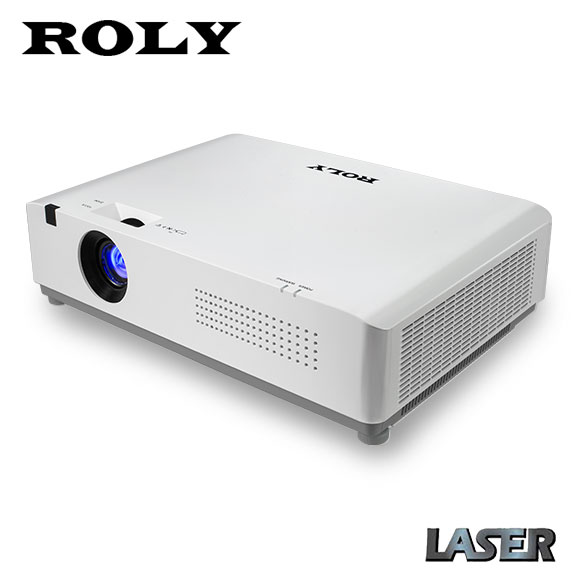

✐RL-C1W

Compact and elegant laser projector

-Brightness: 3600lm

-Resolution: WXGA (1280x800)

-Display Technology: 3LCD

-Designed for visual color - 3LCD Technology

-No Light-Source Replacement for 20,000 hours

-Color Richness Technology,being over 70% of the NTSC standard color gamut coverage

RL-C1W1
RL-C1W2
RL-C1W3
RL-C1W4
RL-C1W5
3LCD

3LCD

3LCD

LASER SOURCE

3LCD

WXGA

3LCD

High Contrast
1000000:1

3LCD

360° flexible
installation

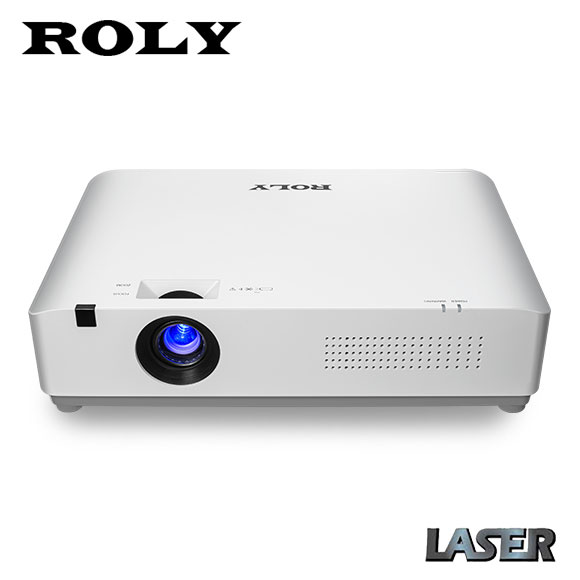

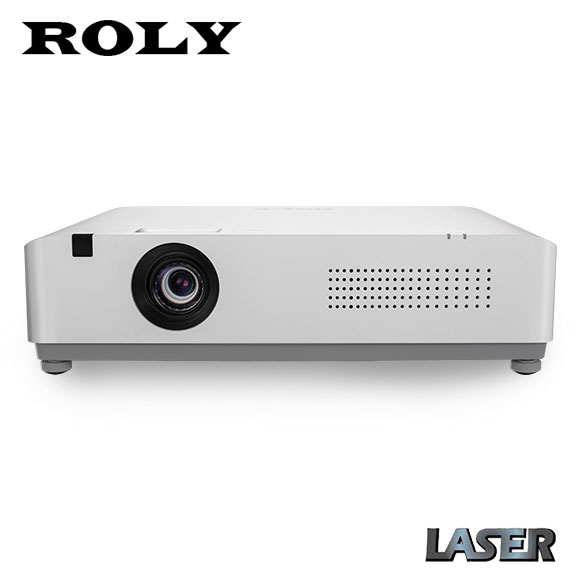

The lightweight and elegant laser projector

The lightweight and elegant laser projector is a cutting-edge device that combines portability with style. Its sleek design and advanced laser technology make it a perfect choice for both professional presentations and home entertainment.

lightweight and elegant laser projector

Designed for visual color - 3LCD Technology

For 3LCD technology, the color brightness equals to white brightness. There is no rainbow effect, and higher color restoration capability, which will produce more real and nature color.

3LCD Technology

No light-source Replacement for 30,000 hours

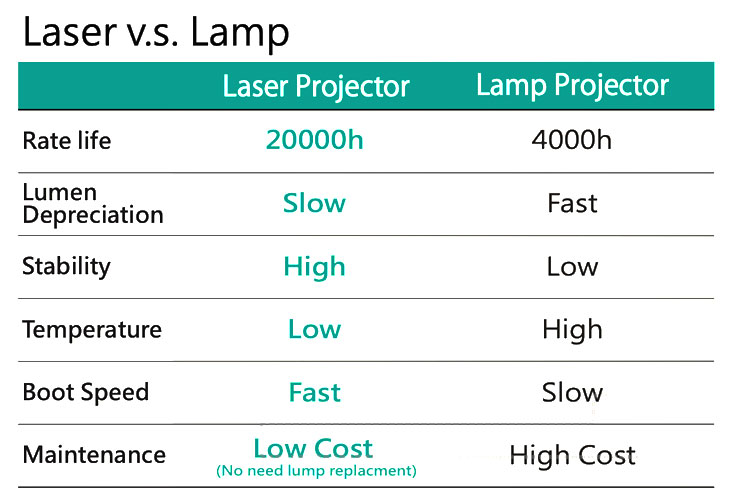

LaserVsLamp

ROLY Chameleon Color Richness Technology

With over 70% of the NTSC standard color gamut coverage, it truly restores the natural colors seen by the human eye. The overall technology is like a chameleon that can accurately and quickly display its own protective color when it is affected by the environment.

Color Richness Technology

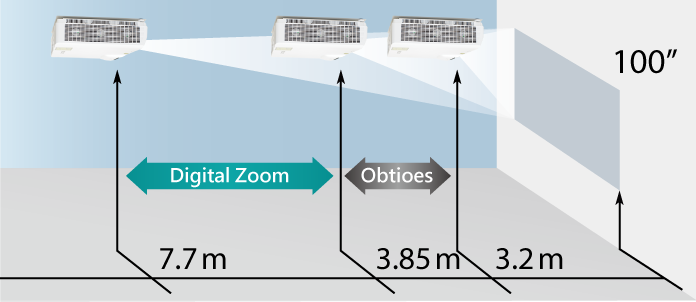

Digital Zoom Function

With our brand-new digital zoom feature, you can proportionally shrink the displayed image to fit your screen, even beyond the optical zoom range, eliminating the need to reposition your projector mount. This saves you time, money, and hassle.

註

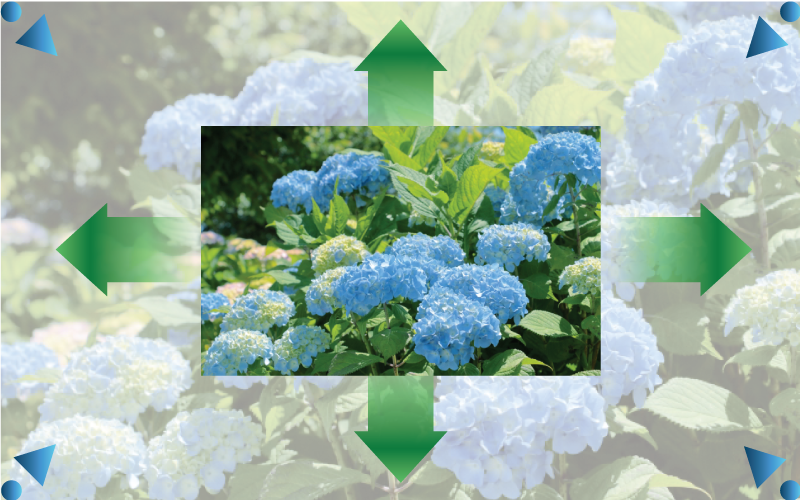

Digital Shift Function

The digital zoom is paired with a digital shift function, allowing the shrunken image to be moved vertically, horizontally, and diagonally to the desired screen position, providing greater installation flexibility.

註
註解

24/7 uninterrupted and stable operation

Breakthrough from the thermal dilemma of the laser-light source, the stability of the whole machine is perfect under the condition of long-term uninterrupted operation.

註解

Low Operation Noise

Normal: 33 dB
ECO Mode: Only 25 dB

Specification

  • Brightness
    3600lm

  • Resolution
    WXGA (1280x800)

  • LCD panel
    0.59" x3 (16:10)

  • Light source
    Laser diode

  • Light source life
    Normal:20000hr. ECO:25000hr

  • Contrast
    1,000,000:1

  • Lens
    F1.6~1.76,f=19.1~23mm,Manual zoom (1.2x),Manual focus

  • Screen size
    30"-300"

  • Throw distance
    0.93-11.50m

  • Keystone Correction
    Vertical: ±40º (Auto, Manual),Horizontal: ±15º (Manual)

  • Noise
    Normal mode: 33dB,Eco mode: 25dB

  • Projection method
    Ceiling/floor,front/rear (Auto Image Rotation)

  • Power supply
    100-240V AC (50/60Hz)

  • Power Consumption
    188W(100-120V) ; 181W(200-240V) ;Standby Mode: < 0.5W

  • Dimension (WxHxD)
    420× 100× 280mm (not incl. protruded part)

  • Weight
    4.65kg
