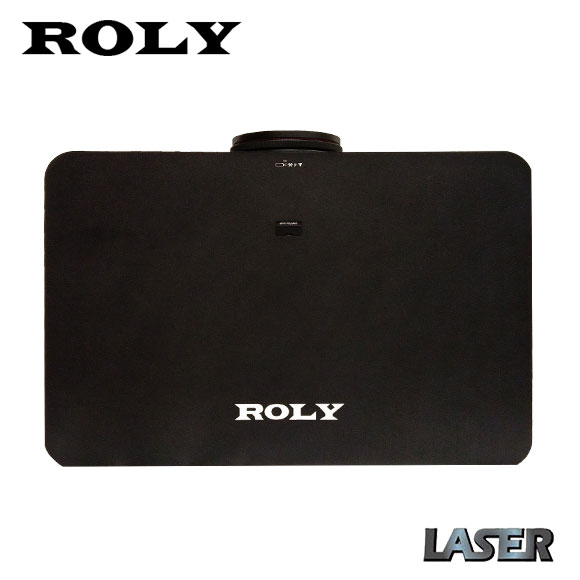

✐RL-10KU

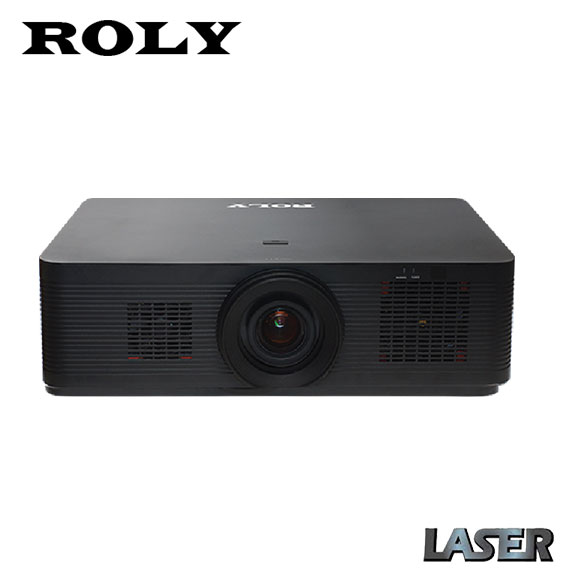

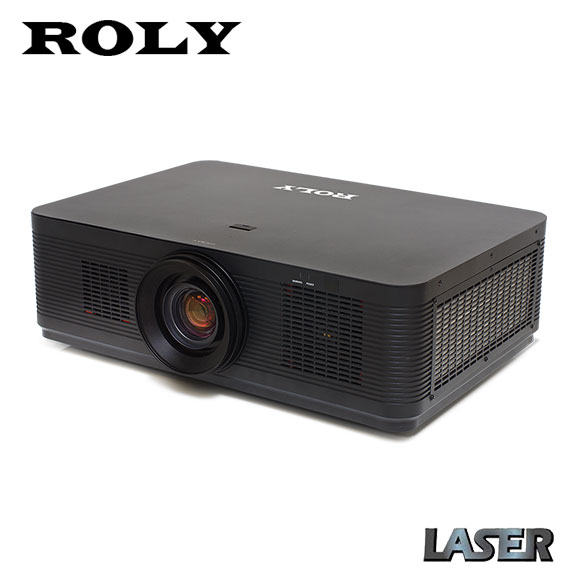

ROLY higher brightness and flagship installation Projector

-Brightness: 10,000lm

-Resolution:WUXGA (1920x1200)

-Display Technology: 3LCD

-Higher Brightness, Top Performance, Brilliant Color Images

-4K signal compatible

-Compatible with HDBaseT

-Powerful 1.8x Standard Zoom Lens

Feature

3LCD
LASER SOURCE

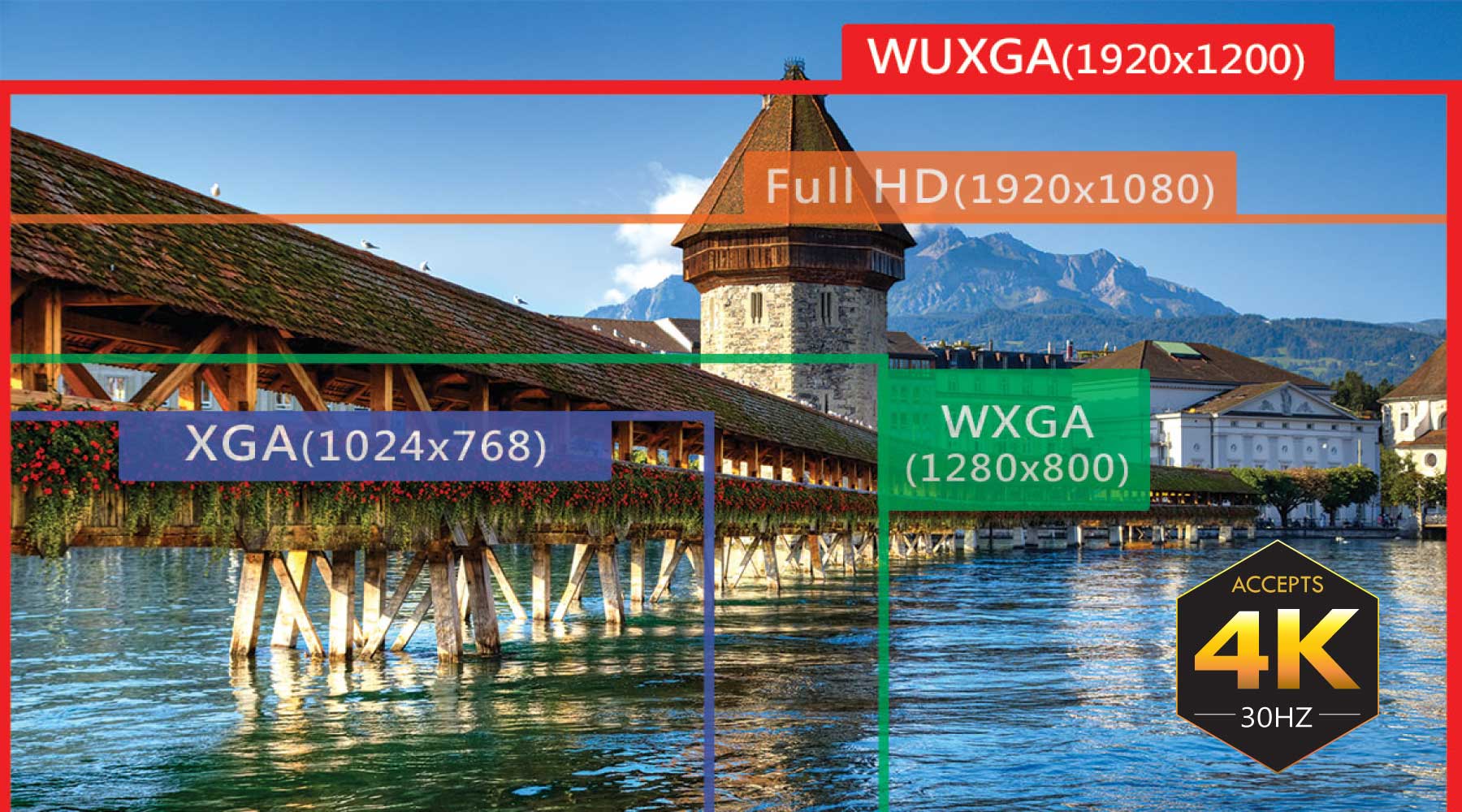

WUXGA
High Contrast 3500000:1
HDBaseT

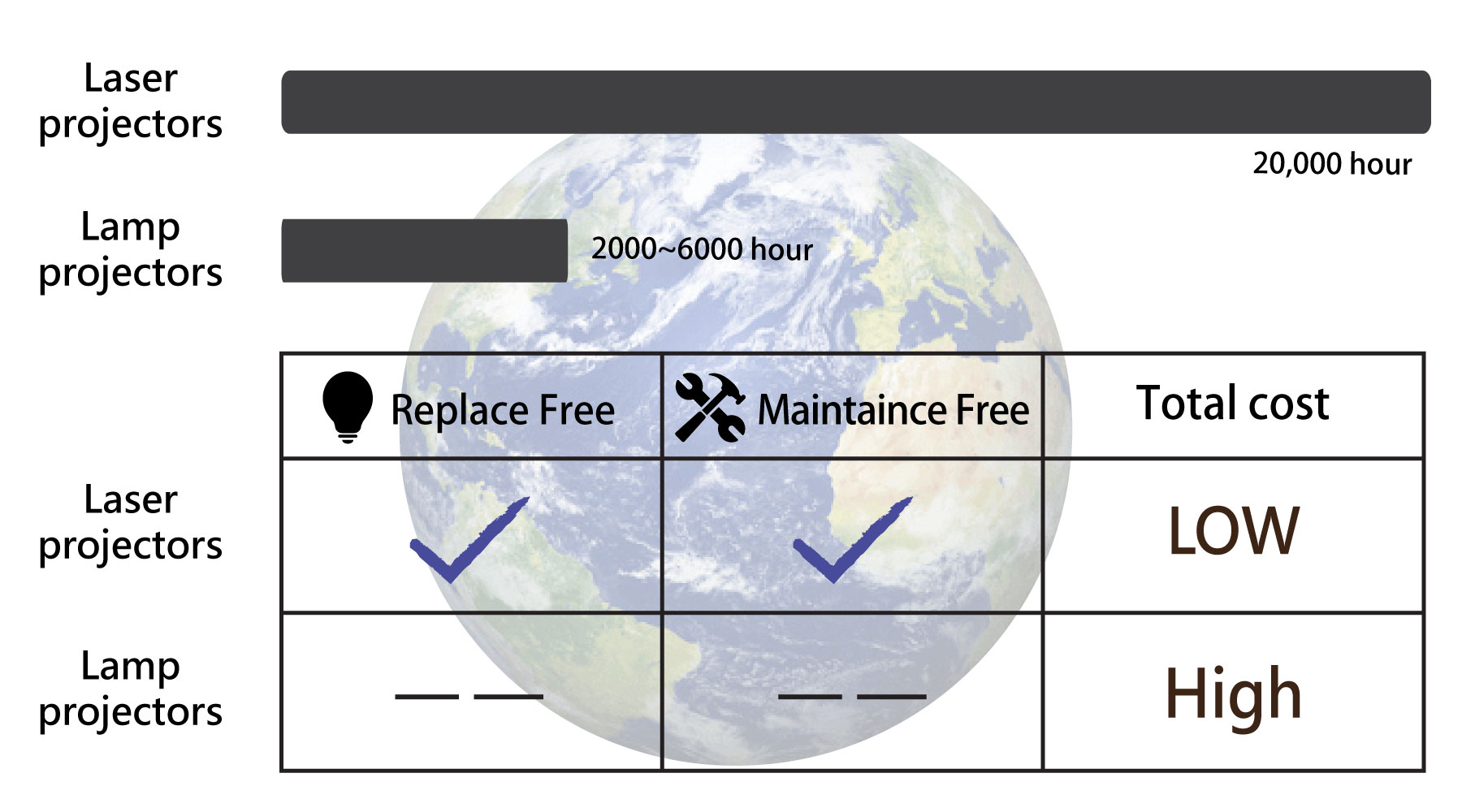

Long-lasting laser light source

Stable and reliable laser light source has an ultra-long service life of 20,000 hours. It can save more than 30% of energy compared, and also solve problem of lumen depreciation.

No Light-Source Replacement for 20,000 hours

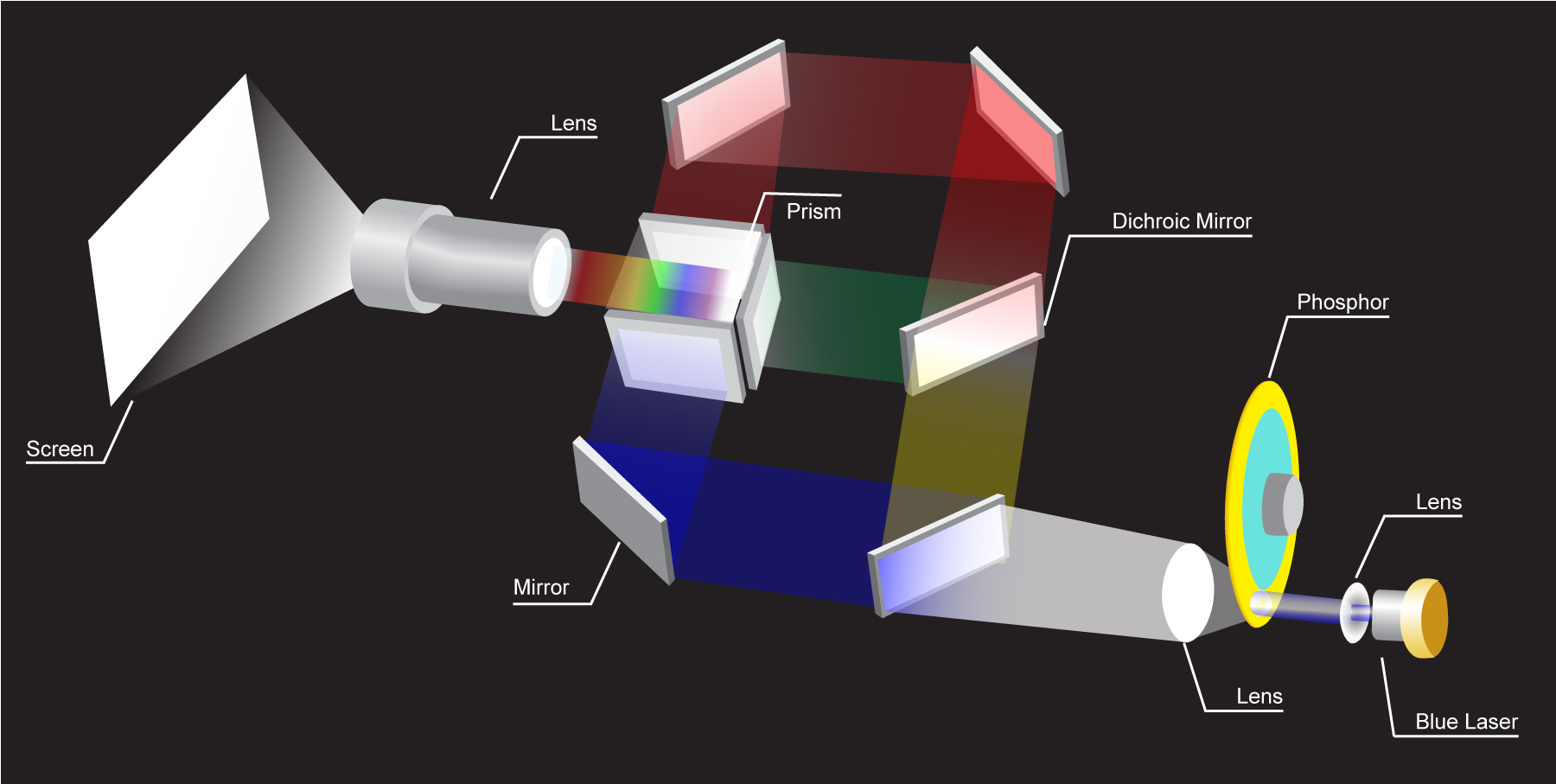

3LCD Technology - Designed for visual color

Latest developed three LCD panels work together to generate natural color optical system. For 3LCD technology, the color brightness equals to white brightness. There is no rainbow effect, and higher color restoration capability, which will produce more real and nature color.

4K signal compatible

RL-10KU supports decoding 30Hz 4K signal and HDR for an ultra-high-resolution experience. The system also supports HDR (High Dynamic Range) and emulation for BT.2020, which reproduce a wider color range than conventional standards.

Professional Dust Prevention

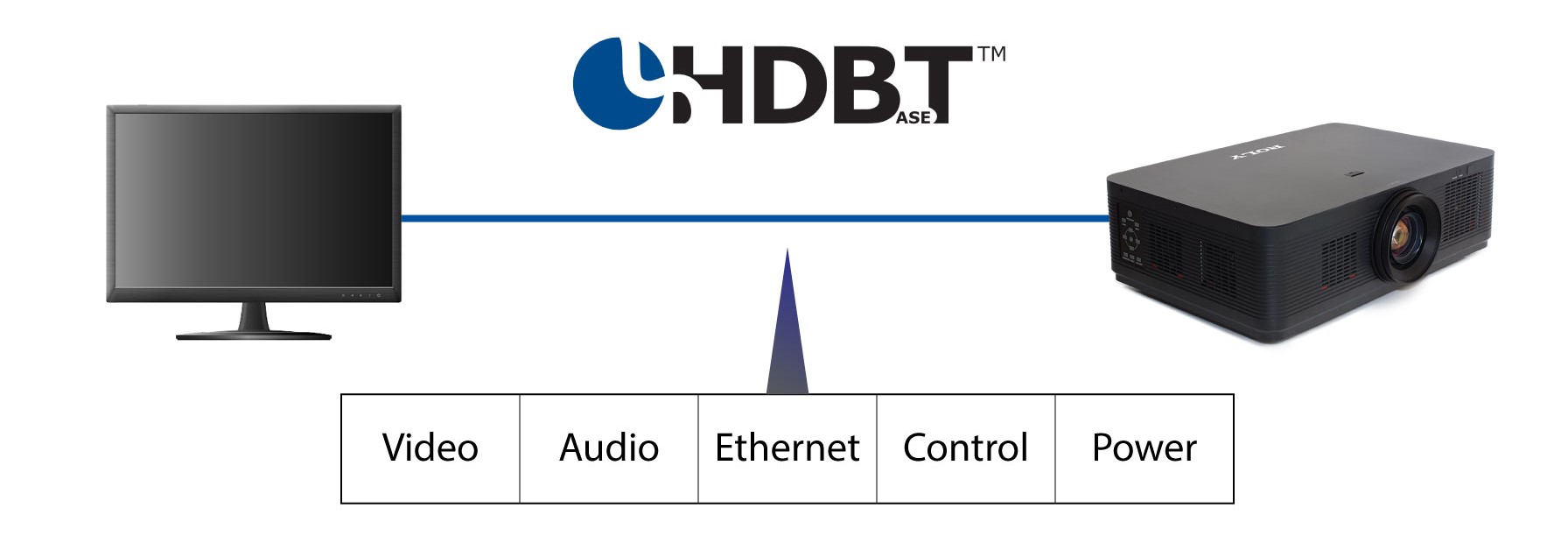

Compatible with HDBaseT

HDBaseT offers uncompressed HD multimedia content, including 4K resolution, through a single network cable of up to 100 m.

Compatible with HDBaseT

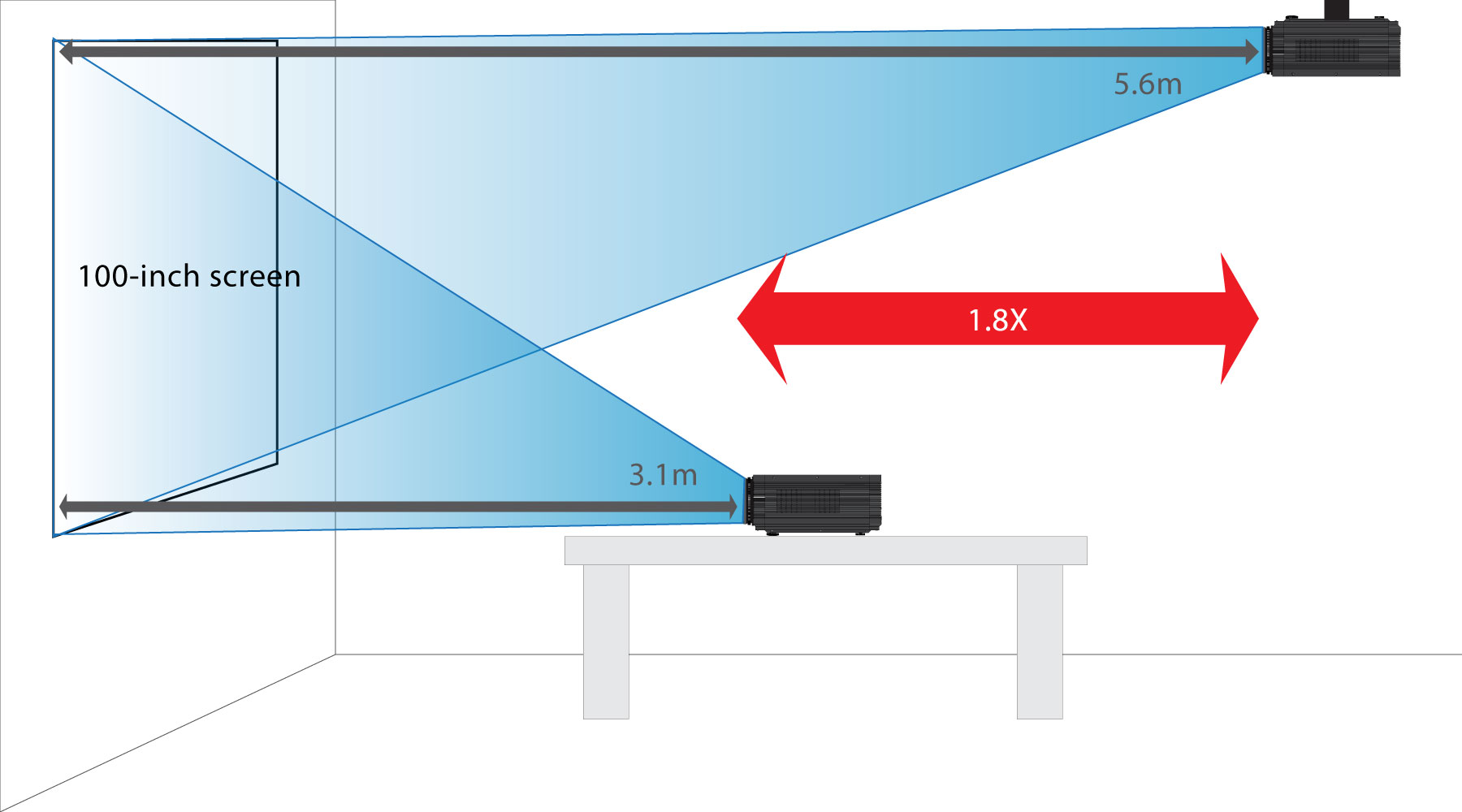

Powerful 1.8x Standard Zoom Lens

Equipped with 1.8x powered zoom standard len for great performance. It can easily project 100 inch big screen within the distance of 3.1 - 5.65m.

Powerful 1.8x Standard Zoom Lens

Flexible Usage for Installation Use

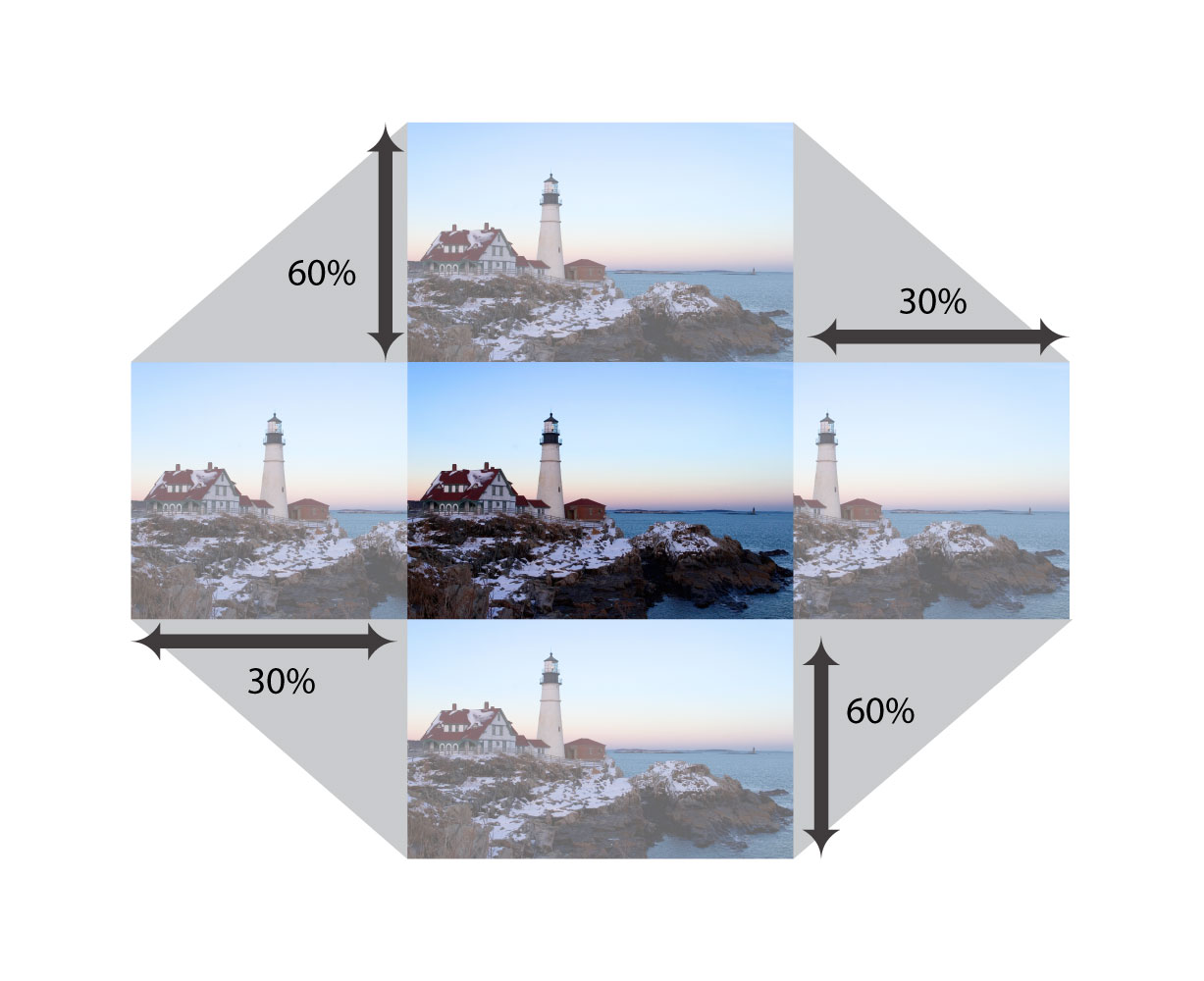

Powered Lens Shift & Powered zoom and focus.
Featured both vertical/horizontal lens shift (vertical: ± 60%; horizontal: ±30%). Zoom and focus can operated by remote control, so the adjustment can be carried out from a distance.

Flexible Usage for Installation Use

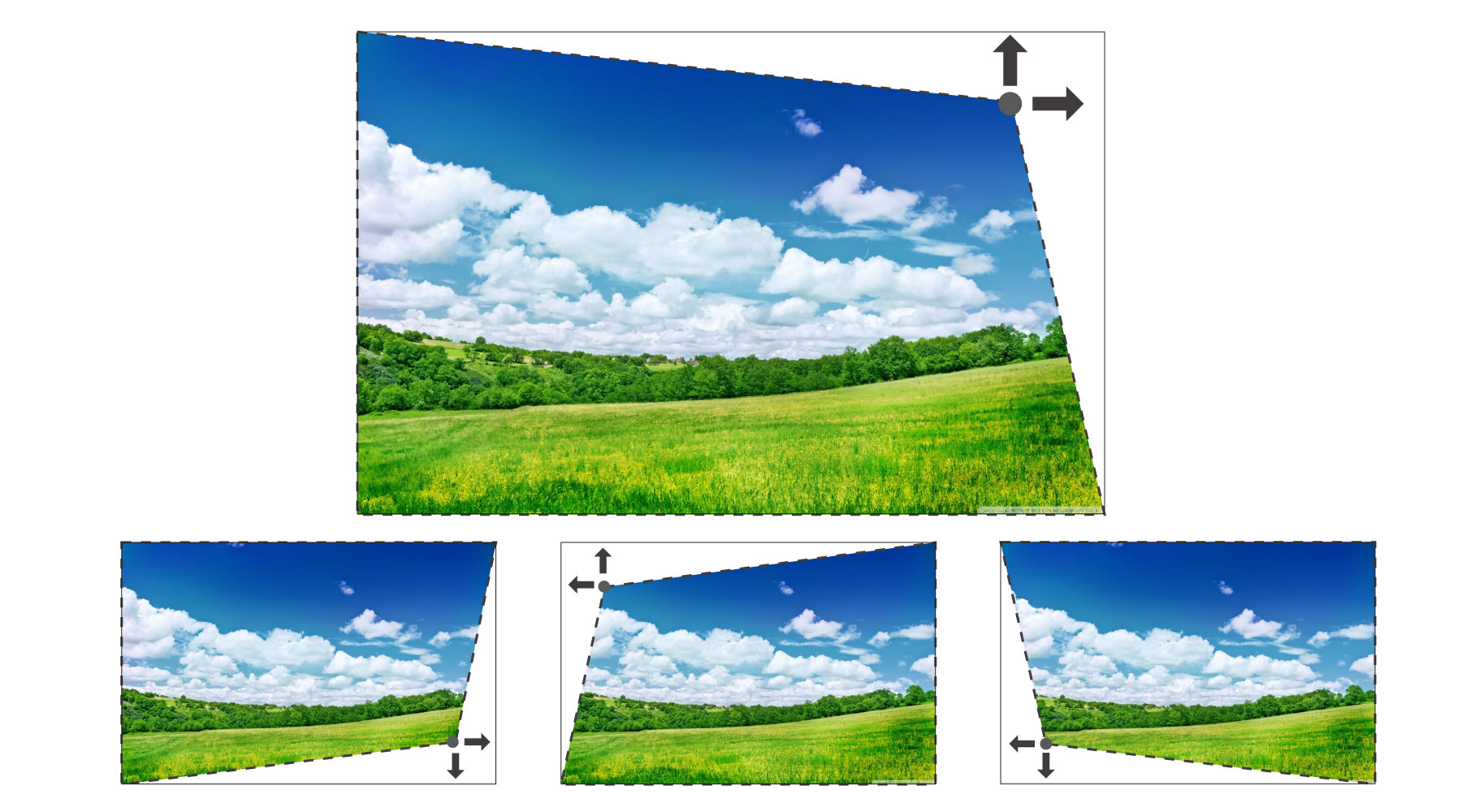

Corner Keystone Correction

This function is design for four screen corners and Horizontal / Vertical Corner Keystone Correction in order to adjustments for a distortion image.

Corner Keystone Correction

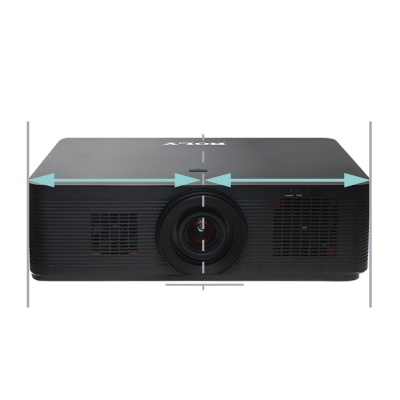

Lens Center Layout

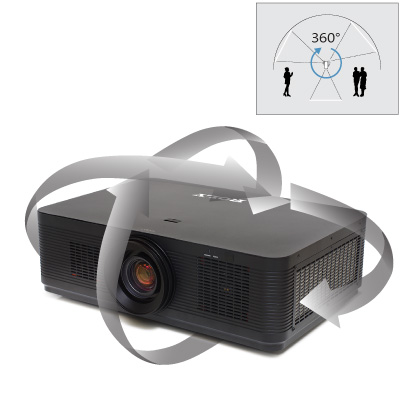

360° free and flexible installation function

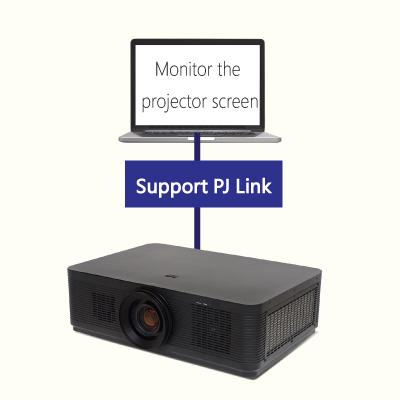

Compatible with PJ-Link

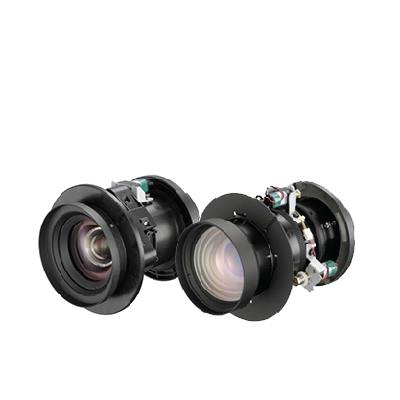

Interchangeable lenses (Optional)

Specification

  • Brightness
    10000lm

  • Resolution
    WUXGA (1920x1200)

  • LCD panel
    0.76" x3 (16:10)

  • Light source
    Laser diode

  • Light source life
    Normal:20000hr.

  • Contrast
    3,500,000：1

  • Lens
    F1.8~2.6，Auto zoom (1.8x)，Manual focus

  • Screen size
    50"-500"

  • Throw ratio
    1.42-2.64

  • Throw distance
    1.5-28.4m

  • Lens Shift
    Vertical: ±60% (Manual)，Horizontal: ±30% (Manual)

  • Keystone Correction
    Vertical: ±40º (Auto, Manual)，Horizontal: ±15º (Manual)

  • Noise
    Normal mode: 42dB

  • Projection method
    Ceiling/floor，front/rear (Auto Image Rotation)

  • Power supply
    100-240V AC (50/60Hz)

  • Power Consumption
    1000W max (1W when Standby mode set to Eco)

  • Dimension (WxHxD)
    645 x 210 x 440mm (not incl. protruded part)

  • Weight
    23kg
